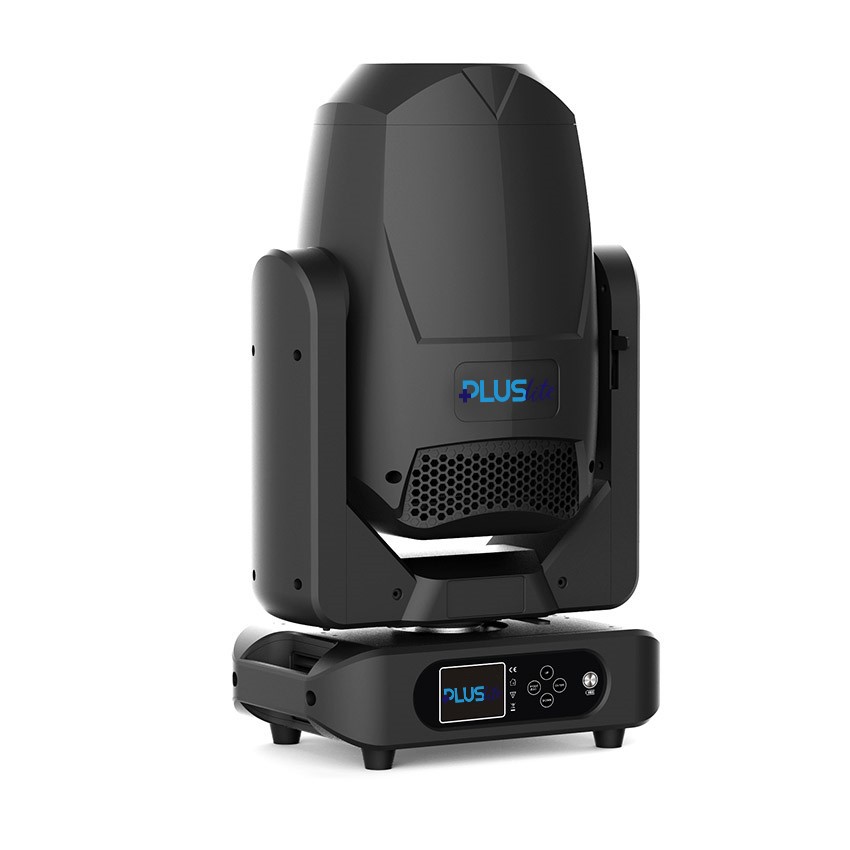

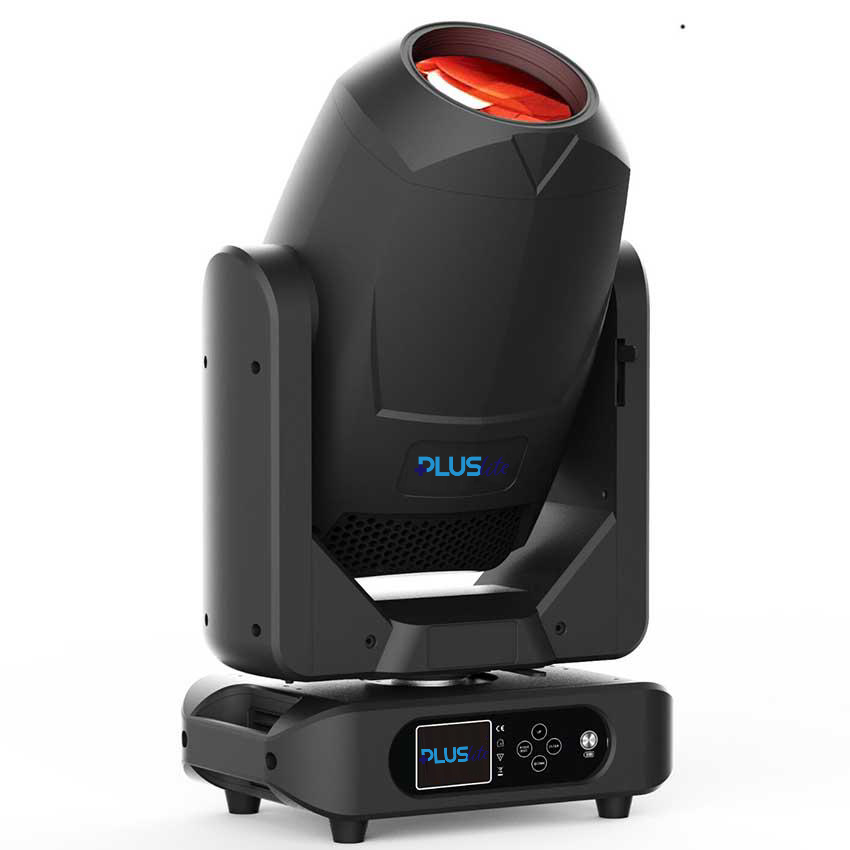

VERO300 3n1 Beam Spot Wash

MOVING PROFILE LED
OPTICS: •Light Source :300W White LED Module 13,000lm CRI>80
MOVEMENT: •Pan movement:540°(16 bit) •Tilt movement :270°(16 bit) •Automatic reset function
COLORS :•11colors, Bi-directional rainbow effect•Linear CMY+CTO
GOBOS: •Fixed gobo wheel: 14 gobos + open•Rotating gobo wheel: 7 HD interchangeable gobos +open
FEATURES:•Prism:1 interchangeable rotating and indexable prism (3,8,16,24 facet option)•Iris: Linear adjustable with macro•Frost: 1 pcs Frost Filter, linear frost•Focus: DMX 512 linear focus•Zoom: 5°-45°linear adjustment•Dimmer: 0-100% linear dimmer•Strobe: Electronic strobe,0.3-20Times/SEC
CONTROL AND PROGRAMING:•Standard mode: 24 channels•Control mode: DMX512, 3-pin/5-pin DMX512; protocols RDM;wireless (option) and Art-Net (option)•Manual programming: DMX and RDM data in/out•Fan mode: NORMAL/PERFORMANCE/QUIET
OTHER FUNCTION: •2.4inch color LCD screen•High reliability touch button•Support Multi-language•Automatic monitoring of light source temperature,
high temperature automatic protection•Intelligent cooling system•DMX512 Software update•Display lamps use time•100% brightness without stroboscopic problem•Internal rechargeable battery (3.7V rechargeable lithium-ion battery)•Maintenance mode•Intelligent control of wind speed•Reverse display•Control panel lock
POWER: •Input voltage:100V~240V AC 50/60Hz •Rate power:500W@220V•Power socket: power connector input and output•DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
HOUSING: •Environmentally friendly flame retardant materials•High temperature resistant engineering plastics•Device locking PAN and TILT mechanisms for transportation and maintenance.•Intellectual property rights of appearance and structure design
IP GRADE: •IP:20
DIMENSION AND WEIGHT: •Dimension337*337*568mm •Net weight:15KG

VERO300 3in1 Beam Spot Wash User Manual
VERO300 3n1 Drawings
