Every component inside the A Class subwoofers are optimized for each unique design. From transducers and cabinet architecture, to precision-tuned vents and crossovers, our team ensures that every element works at peak efficiency and in perfect harmony to deliver impactful and defined low frequency extension.As the flagship of the A Class subwoofer family, the formidable as-418 features four custom-engineered, 18-inch drivers into a compact enclosure comparable in size to most dual-18-inch subwoofer designs. Drivers are configured into a pair of front-to-front, isobaric (push-pull) configurations. The direct radiation from each front driver is combined with the output of the companion rear driver in a tuned vented enclosure. This Compound Force design enables more output and less distortion than a typical dual 18-inch subwoofer, in the same footprint.
Features
- Quad 18″ LF drivers with 4″ (100 mm) voice coils
- Dual isobaric configuration for extended low frequency response and increased fidelity
- Very low second order harmonic distortion inherent in push / pull isobaric design

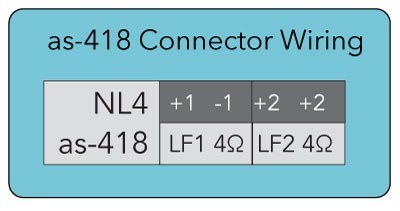

- Dual drive 4-ohm loads, pin 1 +/-, pin 2 +/-
- 2400 W/4800 W, long term/program power handling
- Usable response down to 30 Hz
- Max long term output 134 dB SPL
- Multi-ply, cross-grain laminated birch construction
- Perforated steel grills with powdercoat finish
- Integrated handles and stacking skids
Applications
- Extending low frequency response for systems in: clubs, theaters, concert halls, houses of worship
- Dance Venues
- Portable and installed AV systems
- Live sound reinforcement
- Corporate AV
The custom-engineered transducers inside the as-418 are equally unique. Each feature a large, 4-inch voicecoil and ceramic ferrite magnet. Ceramic is a much better choice for subwoofer application where extreme excursions generate operating temperatures that can easily demagnetize neodymium components over time. By combining the large voice coil with a ceramic magnet structure, we increased power handling and decreased power compression, while ensuring reliable performance that would be consistent year after year under the most demanding conditions.
The as-418 features a robust, multi-ply birch enclosure with extensive interior bracing and dampening materials to reduce unwanted flex and resonant frequencies. The cabinet is protected by a rugged, industrial grade polyurethane finish while the front features a protective steel grill with a water resistant powder coating. Integrated handles allow for easy portable use.

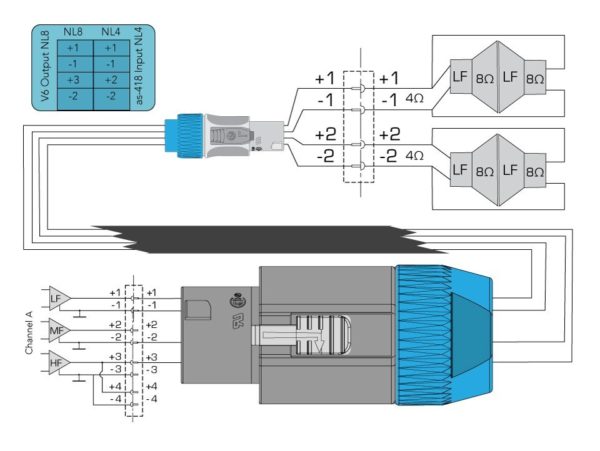

Cabling

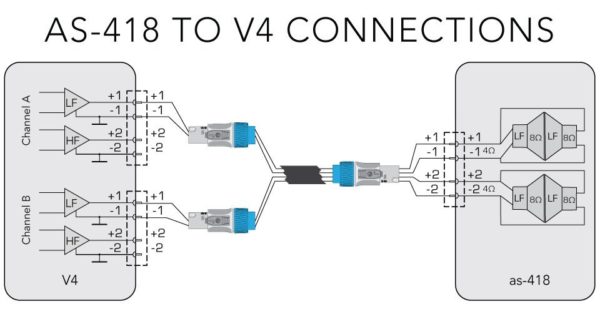

Powering a single AS-418 with a V4 amplifier

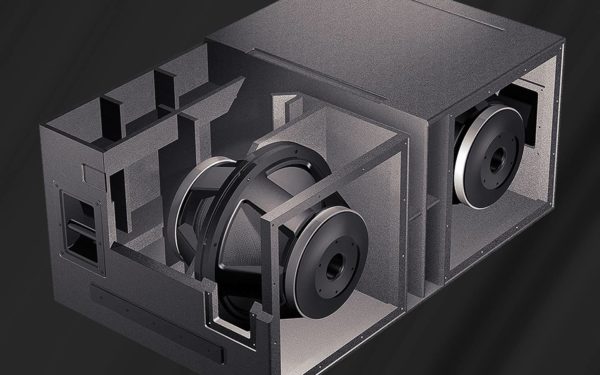

Subwoofer Isobarics
