The hm-108A, awarded Best Stage Monitor for 2018 by ProSoundWeb Readers, Live Sound International Magazine, leverages VUE’s most advanced technologies to deliver exceptional output and definition from a very compact and durable package. From their precision transducers with state-of-the-art diaphragm and suspension components to the internal VUEDrive Systems Engine, all aspects of the hm-108a work in perfect harmony to deliver unprecedented output and fidelity for the most demanding fold-back applications.

Features

  • Wide 70º x 40º coverage
  • Neodymium HF compression driver with Truextent® beryllium diaphragm for exceptional high-frequency clarity and output
  • Integrated internal VUEDrive System Engine equipped with 64-bit digital processor and tons of fanless amplifier horsepower and universal mains operation (85V to 260V) Optimized coverage for real-world stage monitoring use
  • Analogue, AES/EBU and Dante inputs along with build in Ethernet network switch for loop-though audio on networking. Full network monitoring and control via SystemVUE software.
  • Very low-profile and rugged birch ply-hardwood enclosure with 12-layer coating Dura-Coat LX finish provides clear sight lines and years of reliable service

Applications

  • TV Broadcast
  • Symphonic Fold-back
  • Theatrical sound reinforcement
  • Portable and installed audio-visual systems
  • Themed entertainment venues
  • Houses of Worship

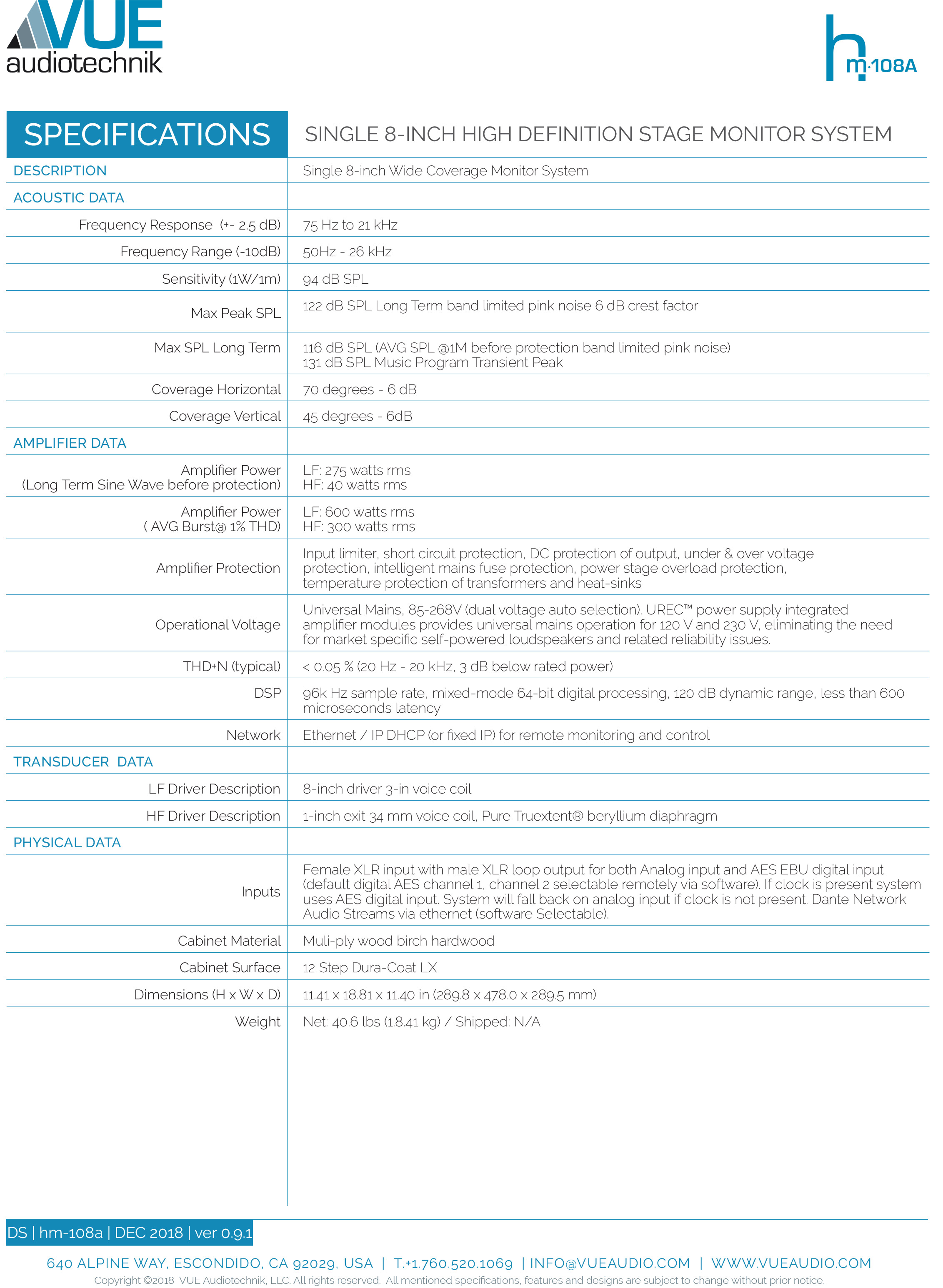

Donwload Technical sheet

Subject to the same “No Compromises” design philosophy behind our flagship h-Class systems, the new hm-108A leverages VUE’s most advanced technologies to deliver exceptional output and definition from a very compact and highly durable package.

From their precision transducers with cutting-edge diaphragm and suspension components to the internal VUEDrive Systems Engine, all aspects of the hm-108a work in perfect harmony to deliver unparalleled output and fidelity for the most demanding fold-back applications.

Rugged and Purposeful Enclosure Design

The precision-engineered transducers are housed in a rugged and extremely low-profile enclosure that ensures clear sight lines from the audience (or camera) to performers,  while providing a large sweet spot for talent–whether directly over the monitor or downstage.

Durability is ensured thanks to a rugged, 12-step DuraCoat LX finish and a heavily braced, powder coated grill capable of surviving the most dramatic lean-ins, stomps, or occasional “axe” bludgeoning.

Road Tested and Stage Ready

Thoughtful cabinet design ensures that the hm monitors offer minimal visual intrusion between audience and performer.  Their uniquely low profile ensures that coveted sight lines are preserved for set designers and video producers alike, while also reducing required truck space when it’s time to pack up and go.

The hm-108A monitor offers exceptionally clean and wide dynamic range – allowing monitor engineers to place solos or vocals in the front of the mix, exactly where they belong.

Finally, the hm-108A  benefits from sophisticated DSP via the internal VUEDrive Systems Engine. This ensures minimal reflections and optimal tuning to avoid the typical hurdles that plague less sophisticated monitor systems.  Thanks to Michael Adams’ real-world perspective, hm monitors arrive from the factory fully ready to rock, with minimal tweaking.


  • Berillio Truextent®
  • SystemVUE Network Monitoring & Control
Go to Technologies

Donwload Technical sheet

I trasduttori di precisione sono alloggiati in un cabinet robusto ed estremamente a basso profilo che assicurano chiare linee di vista dal pubblico ai musicisti, fornendo una grande opportunità per i talenti, direttamente sul monitor o nel downstage.

La durabilità è assicurata grazie a una robusta finitura DuraCoat LX a 12 fasi e una griglia rivestita a polvere pesantemente rinforzata, in grado di sopravvivere ai colpi d’ariete, ai colpi o alle battute occasionali più drammatiche.

Test su strada e Stage Ready

Il design pensile del cabinet assicura che i monitor hm offrano una minima intrusione visiva tra il pubblico e il performer. Il loro profilo eccezionalmente basso assicura che le vistose linee visive siano preservate per scenografi e produttori di video allo stesso modo, riducendo allo stesso tempo lo spazio necessario per il camion quando è il momento di fare i bagagli e andare.

Il monitor hm-108A offre una gamma dinamica eccezionalmente pulita e ampia, consentendo agli ingegneri del monitor di posizionare assoli o voci nella parte anteriore del mix, esattamente al loro posto.

Infine, l’hm-108A beneficia di sofisticati DSP tramite il VUEDrive Systems Engine interno. Ciò garantisce riflessi minimi e ottimizzazione ottimale per evitare i tipici ostacoli che affliggono i sistemi di monitoraggio meno sofisticati. Grazie alla prospettiva del mondo reale di Michael Adams, i monitor arrivano dalla fabbrica completamente pronti per il rock, con minimi ritocchi.

  • Berillio Truextent®
  • SystemVUE Network Monitoring & Control
Go to Technologies
